Prototype Testing Methods That Save Time

Testing prototypes effectively can make or break your product development timeline. While 3D printing enables rapid iteration, knowing what to test - and how to test it efficiently - determines whether you’re actually saving time or just spinning your wheels. After working with businesses across Charlotte’s manufacturing sector, we’ve identified testing approaches that consistently accelerate development cycles.

Why Most Prototype Testing Wastes Time

Traditional testing often tests too much too late. Companies wait until they have a fully-featured prototype before running any tests, then discover fundamental flaws that require starting over. Or they test random aspects without a clear progression, missing critical issues until late in development.

The most efficient approach tests core assumptions first with simple prototypes, then gradually increases complexity. This fail-fast methodology catches showstoppers early when changes are cheap. A basic PLA print that validates your mechanism’s geometry saves weeks compared to discovering clearance issues in a production-ready design.

Consider how testing requirements differ between materials. PLA prototypes work perfectly for fit checks and mechanism validation. But if you need to test actual operating temperatures or chemical resistance, you’ll want PETG or ABS prototypes that more closely match your production material properties.

Progressive Testing: Start Simple, Build Complexity

Stage 1: Form and fit testing requires only basic prints. Use low-resolution settings (0.3mm layers), minimal infill (20%), and PLA material. These prints cost less and finish in hours rather than days. Test critical dimensions, assembly clearances, and ergonomics. A drone manufacturer testing new frame designs doesn’t need flight-worthy prototypes to verify motor mount spacing.

Stage 2: Functional testing adds material considerations. Switch to PETG or ABS if temperature resistance matters. Increase infill to 40-60% for mechanical testing. Add actual fasteners and mating components. This stage validates that parts work together as intended without committing to production specifications.

Stage 3: Performance testing mimics real conditions. Use production-equivalent materials and print settings. Apply actual loads, temperatures, and environmental conditions. This final validation catches issues that only appear under stress.

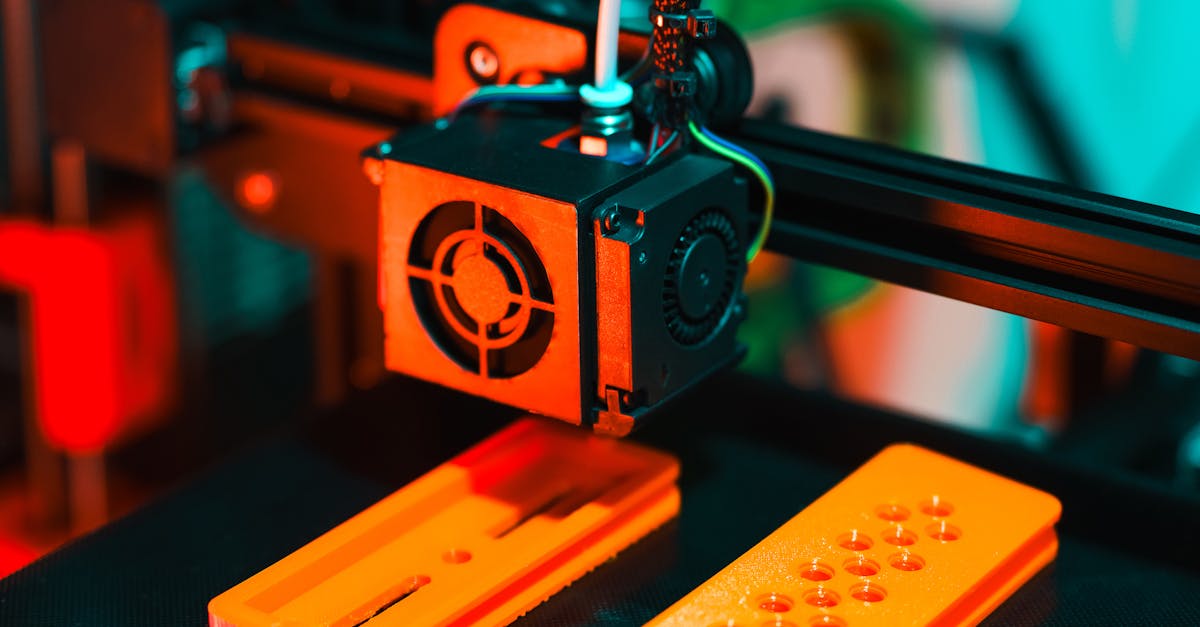

Photo by Jakub Zerdzicki on Pexels

Smart Testing Strategies for Common Applications

Mechanical Assemblies

Start with quarter-scale models to verify kinematics. Full-size parts aren’t necessary to confirm that gears mesh properly or linkages move through their intended range. Print mating surfaces at full scale but simplify non-critical geometry. A single tooth section validates gear profiles faster than printing entire gears.

Critical tests for mechanical parts:

• Clearance verification (0.2-0.3mm minimum for FDM)
• Range of motion validation
• Stress concentration identification
• Assembly sequence confirmation

Enclosures and Housings

Test user interaction points first - button placement, display viewing angles, grip comfort. Internal component layout comes later. Print thin-wall sections (2-3mm) to evaluate strength without wasting material on thick prototypes that will change anyway.

Accelerated testing approach:

• Print only the interaction surfaces initially
• Use sectioned models to access internals
• Test snap-fit features separately before full integration
• Validate cooling airflow with smoke tests on partial prints

Manufacturing Fixtures

Manufacturing teams benefit from testing fixture concepts with basic prototypes before investing in engineering-grade materials. Print fixture bases in PLA to verify part positioning, then upgrade to PETG or ABS only for contact surfaces that see wear.

Digital Testing Before Physical Prototypes

Simulation software catches many issues before printing anything. Free tools like Autodesk Fusion 360 include basic stress analysis. Check for thin walls (under 1.2mm), overhangs exceeding 45 degrees, and bridging spans over 10mm - all common failure points in FDM printing.

Design rules that account for 3D printing constraints prevent wasted test cycles. Orient parts to minimize support material. Add chamfers to edges that would otherwise require supports. Design in assembly clearances rather than forcing perfect-fit tolerances that FDM can’t reliably achieve.

Rapid Iteration Techniques

Version control accelerates testing cycles. Name files systematically: PartName_v1.0_TestType.stl. Document what each version tests and what changed. This prevents re-testing already validated features and helps identify which modifications caused new issues.

Digital file management becomes critical when testing multiple variants. Create a simple spreadsheet tracking:

• Version number and test objective
• Print settings used
• Test results (pass/fail/notes)
• Required modifications

Modular test assemblies save enormous time. Design prototypes with swappable sections rather than reprinting entire assemblies for minor changes. Testing different snap-fit geometries? Create a base with receptacles for interchangeable snap features. Each variant takes 30 minutes to print versus 4 hours for complete parts.

Environmental Testing Without Special Equipment

Standard FDM materials handle surprising environmental conditions when properly tested. PETG withstands outdoor UV exposure reasonably well for prototype testing - you don’t need ASA material until production unless extreme UV resistance is critical.

Simple environmental tests anyone can perform:

• Hot car test: Dashboard exposure simulates 70-80°C temperatures
• Freezer test: Standard freezer reaches -18°C for cold testing
• Water immersion: 24-hour soak reveals layer adhesion issues
• Load testing: Hanging weights tests creep resistance over time

Document environmental conditions and duration. “Survived 72 hours at 75°C” provides useful data. “Seems heat resistant” doesn’t help future design decisions.

When to Stop Testing and Start Producing

Perfect prototypes don’t exist - good enough does. Once core functionality works reliably and critical dimensions verify, transition to small batch production. Bridge production runs of 10-25 units reveal issues that laboratory testing misses while maintaining flexibility for improvements.

Testing beyond diminishing returns wastes the speed advantage 3D printing provides. If your prototype passes 90% of requirements, consider whether that last 10% justifies delay. Often, real-world use provides better feedback than extended prototype refinement.

Documentation That Accelerates Future Projects

Test data becomes institutional knowledge. Record not just what worked but what didn’t and why. “Version 3 snap-fits failed at 2.5mm thickness” helps the next project start with 3mm snaps. Build a library of proven geometries, clearances, and design patterns.

Standard test procedures ensure consistent results:

1. Define pass/fail criteria before testing
2. Use consistent test methods across versions
3. Record actual measurements, not just pass/fail
4. Note print settings that affected results
5. Include photos of failure modes

Cost-Effective Testing for Startups

Charlotte startups often lack dedicated testing equipment. Partner with local makerspaces or universities for specialized tests. UNC Charlotte’s engineering labs offer tensile testing and thermal analysis at reasonable rates.

Budget-friendly testing progression:

1. Manual functional tests (free)
2. Environmental exposure tests (free)
3. Basic load testing with weights ($20-50)
4. Professional material testing when needed ($200-500)

Most products validate sufficiently with creative manual testing before requiring professional analysis.
